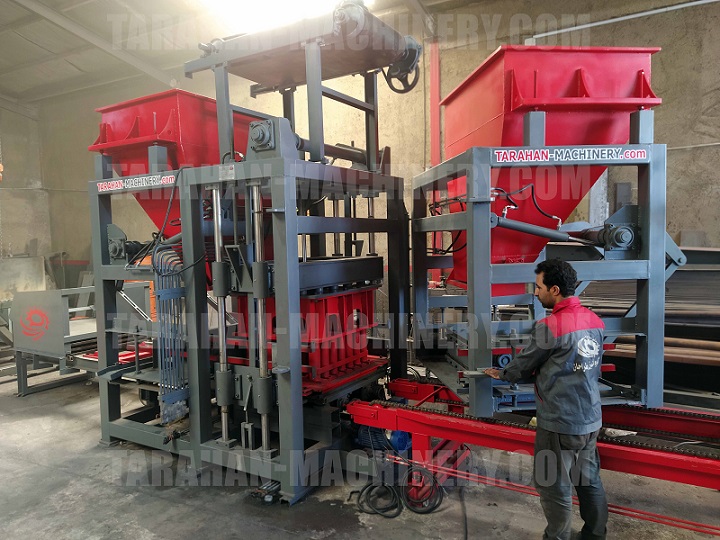

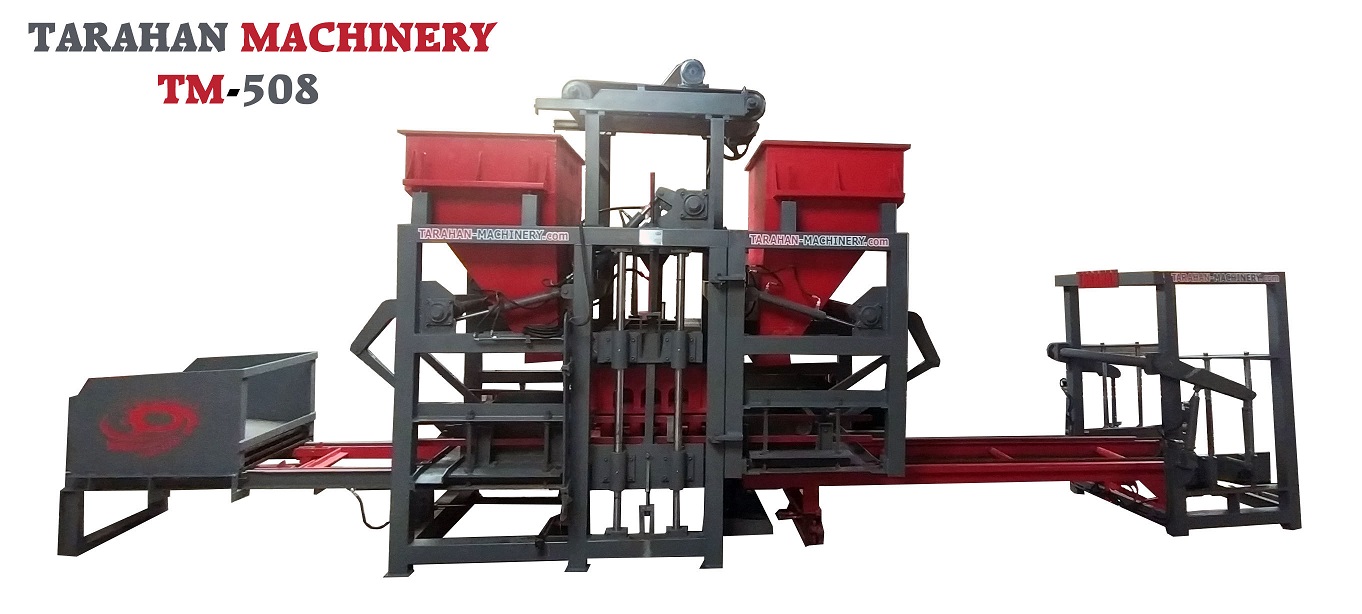

Tarahan TM-508 Concrete Paving Block Machine
The TM-508 dual-pocket concrete paving block machine is designed for producing various colored concrete pavers and cement blocks. It is suitable for medium-capacity workshops and can operate in automatic mode. The pavers produced by this machine have maximum durability and high production quality.
Features of the TM-508 Concrete Paving Block Machine:
- Motogen electric motors
- ASAB Sweden hydraulic shaft
- KASTAS Turkey hydraulic components
- Industrial profile frame structure
- Hyundai/LS Korea electrical components
- Italian hydraulic hoses
- Hardened chrome guide rods
- Vibration system inspired by modern global standards
- Hydraulic pack from European and American brands
Technical Specifications of the TM-508 Concrete Paving Block Machine:
| Specification | Details |
|---|---|
| Machine System | Electric / Hydraulic |
| Pocket Type | Dual-pocket |
| Production Capacity | 80-130 pallets per hour |
| Max Product Height | 300 mm |
| Min Product Height | 50 mm |
| Hydraulic Pressure | 160 bar |
| Pallet Size | 920 × 980 mm |
| Lower Vibration | 4 units – 4 kW, 2800 rpm |
| Upper Vibration | 2 units – 0.5 kW, 2800 rpm |
| Hydraulic Motor Power | 22 kW |
Production Capacity of the TM-508 Concrete Paving Block Machine:
| Product Type | Quantity per Cycle |
|---|---|
| Block (20×40×20 cm) | 8 pieces |
| Curb (15×30×50 cm) | 4 pieces |
| Paver (6×10×20 cm) | 28 pieces |
Video of the Concrete Paving Block Production Machine:
