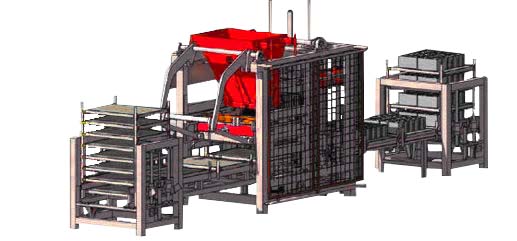

Tarahan TM-518 Automatic Concrete Block Machine
The TM-518 automatic machine is the most advanced and high-performance model in the TM series, designed for the production of various concrete products, including:
- Concrete blocks
- Concrete curbs
- Single-color paving stones (street pavers or interlocking tiles)
- Concrete flower boxes
With high production capacity and a fully automated system, the TM-518 machine is ideal for large-scale factories, providing a high-quality, efficient, and easily controlled production line.
Technical Specifications of TM-518 Automatic Machine
| Feature | Specification |
|---|---|
| System | Electric / Hydraulic |
| Hopper | Single hopper |
| Production capacity | 80-100 pallets per hour |
| Maximum product height | 300 mm |
| Minimum product height | 50 mm |
| Hydraulic pressure | 200 bar |
| Pallet size | 1350 x 1500 mm |
| Lower vibration | 2 units – 11 kW, 2800 rpm |
| Upper vibration | 2 units – 0.5 kW, 2800 rpm |
| Hydraulic motor | 37 kW |
Production Capacity of TM-518 Automatic Machine
| Product Type | Quantity per cycle |
|---|---|
| Concrete Block (20×40×20 cm) | 18 units |
| Concrete Curb (15×30×50 cm) | 8 units |
| Paving Stone (8×16×20 cm) | 36 units |
