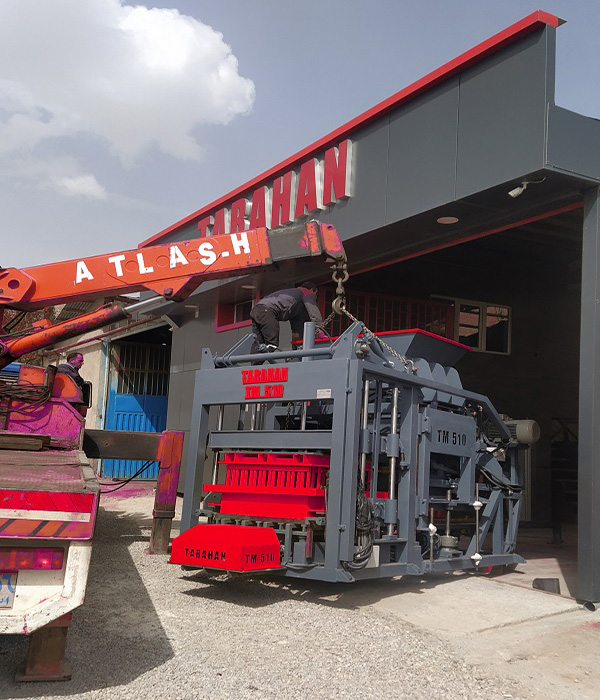

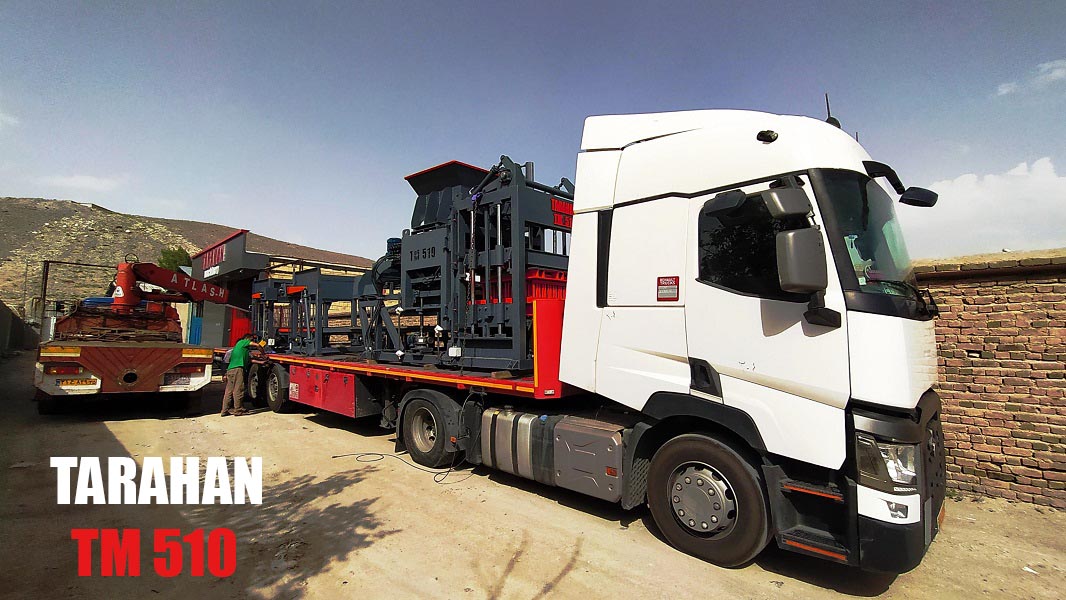

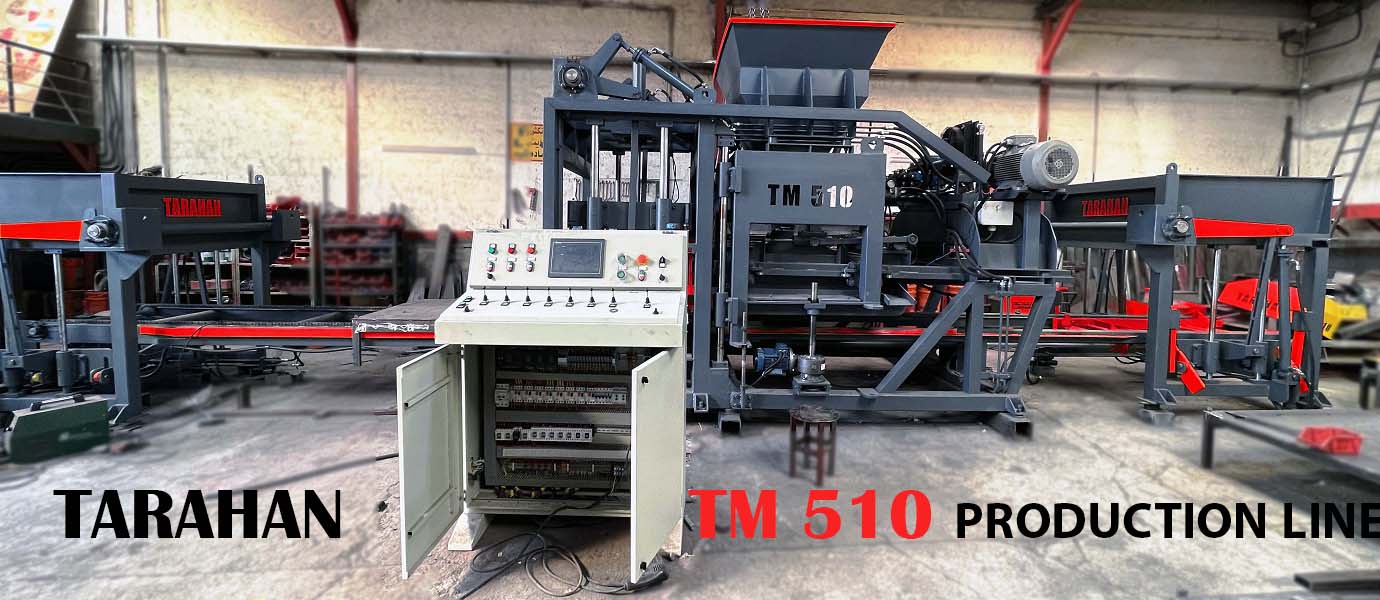

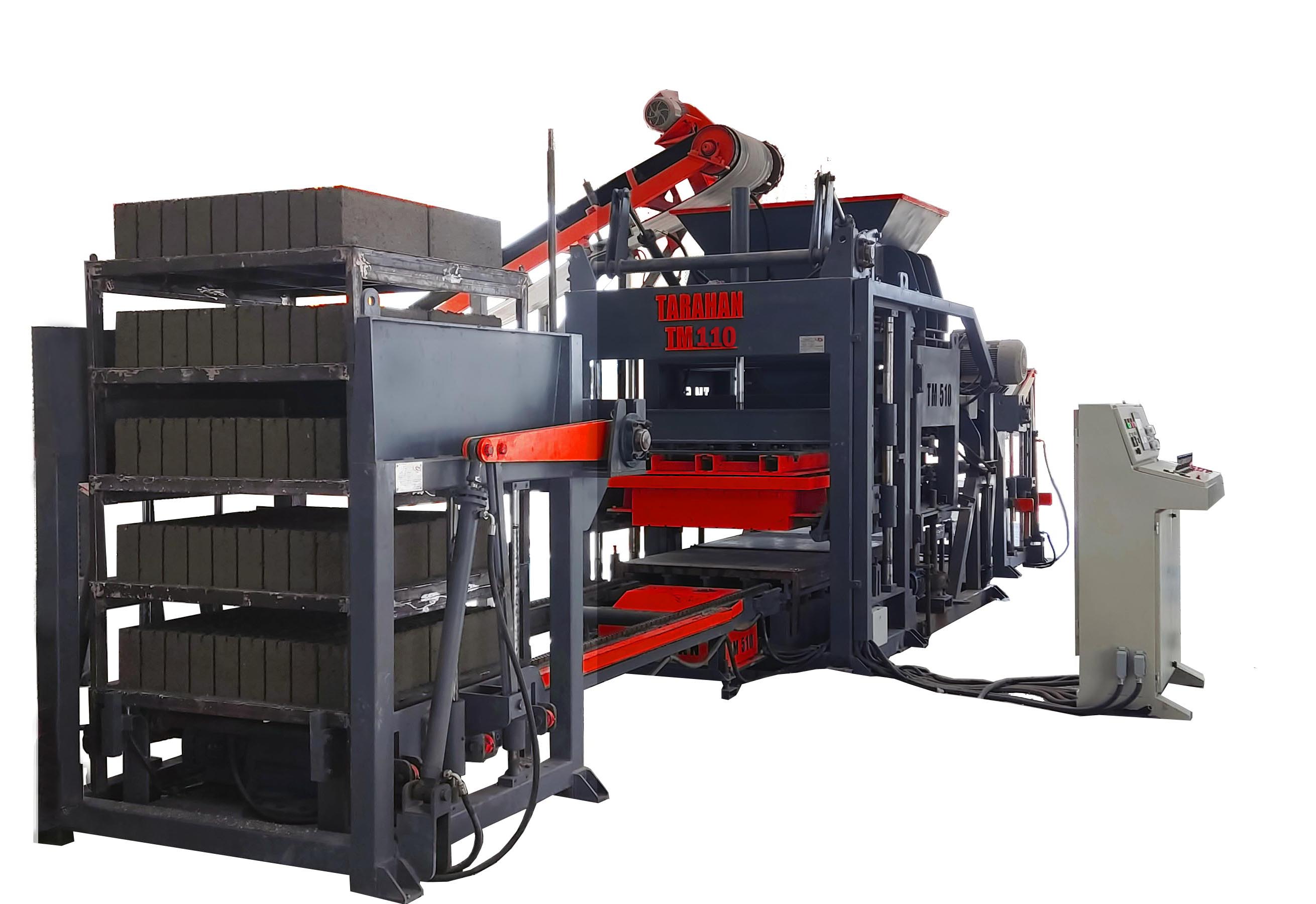

TM-510 Concrete Curb Production Machine
The TM-510 single-hopper concrete curb production machine is ideal for workshops that prioritize curb production. However, the TM-510 also has the capability to produce single-color concrete blocks and paving stones.
Technical Specifications of TM-510
| Feature | Specification |
|---|---|
| System | Electric / Hydraulic |
| Hopper | Single hopper |
| Production capacity | 80-120 pallets per hour |
| Maximum product height | 300 mm |
| Minimum product height | 50 mm |
| Hydraulic pressure | 180 bar |
| Pallet size | 1100 x 1150 mm |
| Lower vibration | 2 units – 5.5 kW, 2800 rpm |
| Upper vibration | 2 units – 0.5 kW, 2800 rpm |
| Hydraulic motor | 30 kW |
Production Capacity of TM-510
| Product Type | Quantity per cycle |
|---|---|
| Concrete Block (20×40×20 cm) | 10 units |
| Concrete Block (15×40×20 cm) | 12 units |
| Concrete Block (10×40×20 cm) | 18 units |
| Concrete Curb (50×50 cm) | 4 units |
| Concrete Curb (30×50 cm) | 6 units |
