TM-536 Automatic Concrete Curb Machine

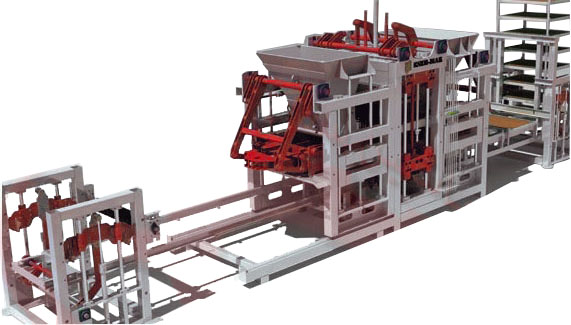

Tarahan TM-536 Automatic Concrete Curb Machine
The TM-536 automatic machine is the most advanced and high-performance model in the TM series. It is designed for the production of various concrete products, including:
- Concrete blocks
- Concrete curbs
- Paving stones (street pavers or interlocking tiles)
- Concrete flower boxes
With its high production capacity and fully automated system, the TM-536 machine is ideal for large-scale factories, offering a high-quality, easily controlled, and efficient production line.
Technical Specifications of TM-536
| Feature | Specification |
|---|---|
| System | Electric / Hydraulic |
| Hopper | Double hopper |
| Production capacity | 80-100 pallets per hour |
| Maximum product height | 300 mm |
| Minimum product height | 50 mm |
| Hydraulic pressure | 200 bar |
| Pallet size | 1350 x 1500 mm |
| Lower vibration | 2 units – 11 kW, 2800 rpm |
| Upper vibration | 2 units – 0.5 kW, 2800 rpm |
| Hydraulic motor | 37 kW |
Production Capacity of TM-536
| Product Type | Quantity per cycle |
|---|---|
| Concrete Block (20×40×20 cm) | 18 units |
| Concrete Curb (15×30×50 cm) | 8 units |
| Paving Stone (8×16×20 cm) | 36 units |
